Ubiquiti Ethernet Surge Protector Version 2.0 (ETH-SP-G2)

Ubiquiti Ethernet Surge Protector Version 2.0 (ETH-SP-G2)
  • 48220_thumb_P_1564033124076
  • 48220_thumb_P_1564033153509
  • 48220_thumb_P_1564033153466
  • 48220_thumb_P_1564033153597
  • 48220_thumb_P_1564033154819
  • 48220_thumb_P_1564033154398
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is available for order?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Ubiquiti Ethernet Surge Protector Version 2.0 (ETH-SP-G2)
  • Model Number:
    ETH-SP-G2
  • Brand:
  • Warranty Period:
    1 Year

Description

Ubiquiti Ethernet Surge Protector Version 2.0


The ETH-SP is engineered to protect any Power‑over‑Ethernet (PoE) or non‑PoE device with connection speeds of up to 1 Gbps.


ESD Protection for Outdoor PoE Devices


Damaging electrostatic discharge attacks and surges are diverted to the ETH-SP and safely discharged into the ground, so network devices are protected.




Additional ESD Protection


All Ubiquiti® airMAX® devices are equipped with built-in ESD protection, so the ETH‑SP adds another layer of protection to your outdoor, high-speed network.

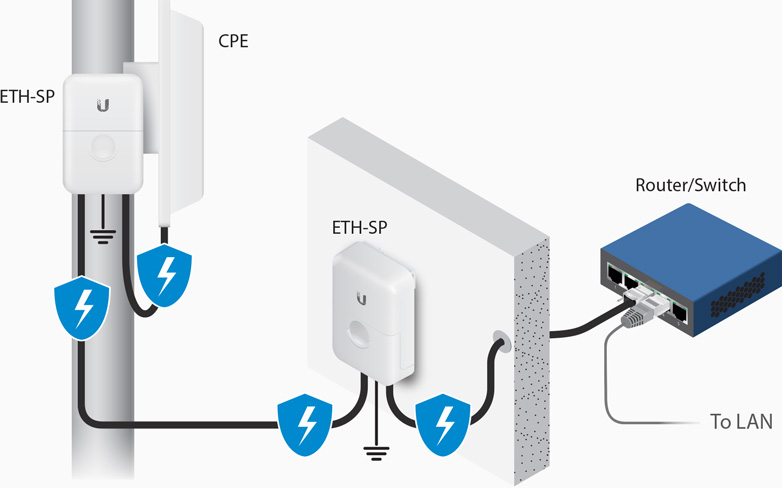

Plug and Play Installation


Connect the ground and Ethernet cables in between your network devices.





SPECIFICATIONS:

Dimensions

91 x 61 x 32.5 mm (3.58 x 2.4 x 1.28")

Weight

80 g (2.82 oz)

Interface Connections

(2) RJ45 Female Connectors

ESD/EMP Protection

Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs

DC Spark-Over Voltage

90V @ 100V/s

Maximum Impulse Spark-over Voltage

700V @ 1kV/µs

Discharge Current

5kA (Maximum) 0.5kA (Normal)

Maximum Insulation Resistance

1G ohm @ 50V

Maximum Capacitance

1.0 pF @ 1 MHz

Data Line Protection

RJ45 10/100/1000 Ethernet

IEEE 802.3af PoE Support

Yes

Shock and Vibration Certification

ETSI300-019-1.4 Standard

Operating Temperature

30 to 65° C (-22 to 149° F)

Operating Humidity

10 to 90% Noncondensing
