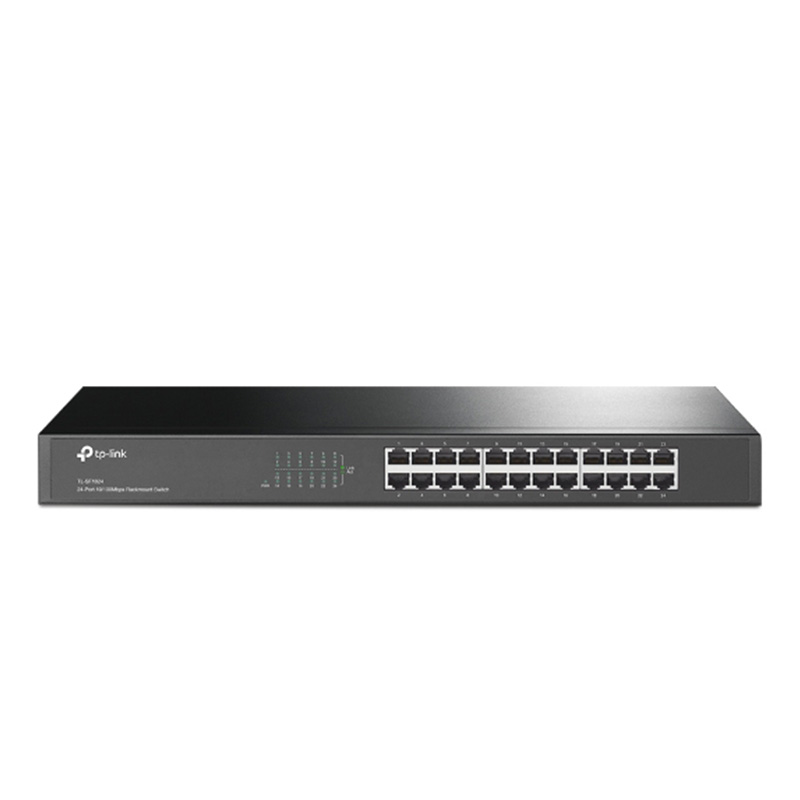

TP-Link 24 Port 10/100Mbps 1U 19in Rack Mount Switch - (TL-SF1024)

TP-Link 24 Port 10/100Mbps 1U 19in Rack Mount Switch - (TL-SF1024)
  • 49453_thumb_P_1547688931875
  • 49453_thumb_P_1547688956206
  • 49453_thumb_P_1547688956581
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is available for order?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    TP-Link 24 Port 10/100Mbps 1U 19in Rack Mount Switch - (TL-SF1024)
  • Model Number:
    TL-SF1024
  • Brand:
  • Warranty Period:
    5 Year

Description



TP-Link 24 Port 10/100Mbps 1U 19in Rack Mount Switch

The 24-Port 10/100Mbps Rackmount Switch TL-SF1024 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.


TP-LINK Green Technology

This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.


High Performance

The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024 work reliably.


Easy to Use

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

TP-Link 24 Port 10/100Mbps 1U 19in Rack Mount Switch - (TL-SF1024)

Specifications
  • Standards and Protocols: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x

  • Interface: 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

  • Network Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

  • 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)

  • Fan Quantity: Fanless

  • Power Supply: 100-240VAC, 50/60Hz

  • Power Consumption: Maximum: 3.2W

  • Dimensions ( W x D x H ): 17.3*7.1*1.7 in. (440*180*44 mm)

  • Mounting: Rack Mountable

  • Max Power Consumption: 3.19W(220V/50Hz)

  • Max Heat Dissipation: 10.88BTU/h

  • Switching Capacity: 4.8Gbps

  • Packet Forwarding Rate: 3.57Mpps

  • MAC Address Table: 8K

  • Buffer Memory: 2Mb

  • Green Technology: Innovative energy-efficient technology saves power up to 75%

  • Transfer Method: Store-and-Forward

  • Certification: FCC, CE, RoHS

  • Package Contents: 24-Port 10/100Mbps Rackmount Switch

                                   Power Cord

                                   Installation Guide

                                   Rackmount Kit

                                   Rubber Feet

  • System Requirements: Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux.

  • Operating Temperature: 0℃~40℃ (32℉~104℉);

  • Storage Temperature: -40℃~70℃ (-40℉~158℉);

  • Operating Humidity: 10%~90% non-condensing;

  • Storage Humidity: 5%~90% non-condensing
