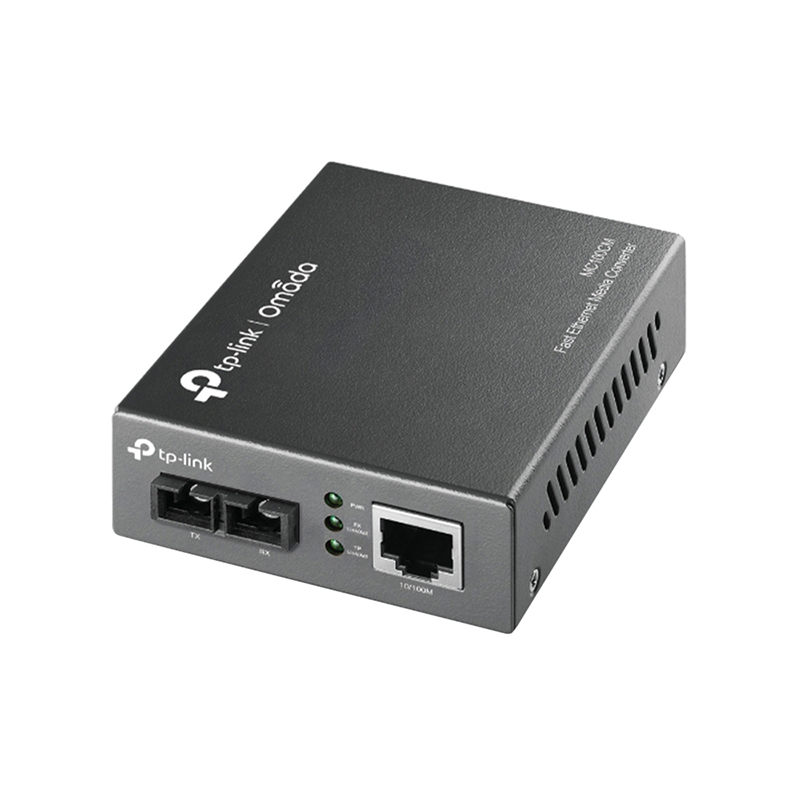

TP-LINK 10/100M RJ45 to 100M multi-mode SC fiber Converter (MC100CM)

TP-LINK 10/100M RJ45 to 100M multi-mode SC fiber Converter (MC100CM)
  • 22374
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is available for order?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    DELIVERY
    • Post In Stock
    NSW Pickup
    • Villawood Robot Super StoreIcon 3 Instant Pickup
    SA Pickup
    • Croydon Robot Super StoreIcon 3 Instant Pickup

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    TP-LINK 10/100M RJ45 to 100M multi-mode SC fiber Converter (MC100CM)
  • Model Number:
    MC100CM
  • Brand:
    TP-Link TP-Link
  • Warranty Period:
    3 Year

Description

TP-LINK MC100CM

The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).


  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards

  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode

  • Extends fiber distance up to 1.2 miles (2km)


TP-LINK 10/100M RJ45 to 100M multi-mode SC fiber Converter (MC100CM)




SPECIFICATIONS:

Standards and protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Basic function

Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 1.2 miles (2km)

Ports

1 100M SC/UPC port
1 10/100M RJ45 port (Auto MDI/MDIX)

Wave length

1310nm

Network media 10base-T

UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Network media 100base-T

UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Network media 100base-FX

Multi-mode Fiber

LED indicators

PWR, Link/Act

Dimensions (W*D*H)

3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)

Power supply

External power supply

Max power consumption

2.4W

Safety & emission

FCC, CE, RoHS

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
