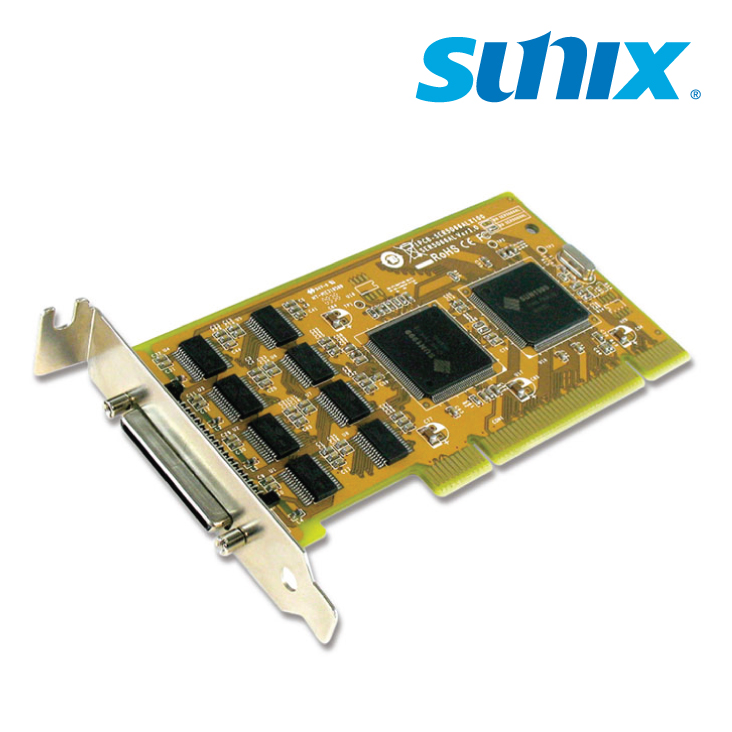

SUNIX SER5066AL, Universal PCI serial communication board, allows users to add or expand eight RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in any slim size PC-based system with low profile bracket structure. SUNIX SER5066AL card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications. |
| Features | Expands 8 independent RS-232 serial port with communication speeds up to 115.2Kbps. High reliability SUN1999 16C950 compatible UART controller on-board. Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification. Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power. On-chip hardware auto flow control to guarantee no data loss. Built-in ± 2KV ESD protection for all serial signals. Plug-n-Play, I/O address and IRQ assigned by BIOS. Low profile bracket design idea for slim or portable PC. Certified by CE, FCC, RoHS, and Microsoft WHQL approval. Support Microsoft Windows, Linux, and DOS.
| | Product Description | 8-port RS-232 Universal PCI Low Profile Serial Board | | Serial Communication | Interface RS-232
Controller SUNIX SUN1999 (16C950 UART Compatible)
Bus Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port 8-port
IRQ & IO Assigned by System
FIFO 128 byte (Hardware)
Signal TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Baud rate 50 bps to 115.2 Kbps
Data bit 5,6,7,8
Stop bit 1,1.5,2
Parity None, Even, Odd, Space, Mark
Flow Control None, Xon/Xoff, RTS/CTS
Protection ±2KV ESD protection for each signal Human Body Model (HBM)
PCB connector Mini SCSI 68 Female | | Driver Support | Windows Client XP/Vista/7/8/8.1 (X86/X64)
Windows Server 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64)
Windows Embedded Windows CE 4.2/5.0/6.0
XP Embedded / POSReady 2009 / POSReady 7 / Embedded System
Linux Linux 2.4.x / 2.6.x / 3.x
DOS DOS
FreeBSD FreeBSD 5.3~5.5 / 6.0~6.4
QNX QNX 6.3.2/6.4.0
* IBM OS/2 WARP 3/WARP 4
* SCO UnixWare UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
* Sun Microsystems Solaris 10
Note : * Supported by special inquiry. | | Regulatory Approvals | Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software Microsoft WHQL Windows
Windows Client: XP/Vista/7/8/8.1 (X86/X64)
Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64) | | Environment | Operation Temperature 0 to 60°C (32 to 140°F)
Operation Humidity 5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F) | | Dimension | PCB Dimension 120 x 63 mm
Bracket Low Profile 80 mm
Bracket Space 1 |
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
|
