Simplecom HDMI 2.0 1x2 Splitter with 2 Port HDMI Duplicator (CM412)

Simplecom HDMI 2.0 1x2 Splitter with 2 Port HDMI Duplicator (CM412)
  • HDMI-Cables-Simplecom-CM412-HDMI-2-0-1x2-Splitter-with-2-Port-HDMI-Duplicator-5
  • HDMI-Cables-Simplecom-CM412-HDMI-2-0-1x2-Splitter-with-2-Port-HDMI-Duplicator-3
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is available for order?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    DELIVERY
    • Post In Stock
    NSW Pickup
    • Villawood Robot Super StoreIcon 3 Instant Pickup
    SA Pickup
    • Croydon Robot Super StoreIcon 3 Instant Pickup

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Simplecom HDMI 2.0 1x2 Splitter with 2 Port HDMI Duplicator (CM412)
  • Model Number:
    CM412
  • Brand:
    Simplecom Simplecom
  • Warranty Period:
    1 Year

Description

Please note: The product only allows the display to be duplicated not extended it will display the same picture on both outputs




CM412 is a 2 Port HDMI 1x2 splitter, allows to duplicate one HDMI signal source device to two displays. CM412 supports video resolutions up to 4Kx2K@60Hz, as well as HDR10 and HDCP2.2 compliant.


Widely compatible HDMI devices with HDMI 2.0 support, ideal for latest online streaming box and game console with 4K HDMI output. With downscaling feature, you can use different resolution monitors*, it allows you to play game in 4K from HDMI output 1 and capture in 1080p from HDMI output 2 under Mixed mode.


  • Simultaneously transmit video and audio from one HDMI source to two HDMI displays

  • Auto detects and configures video resolution according to the capabilities of each connected display*

  • Downscaling feature, output 4K and 1080p simultaneously

  • Support HDMI 2.0b, backwards compatible with HDMI 1.4 and HDMI 1.3

  • Support HDCP 2.2, also compatible with HDCP 1.4

  • Support resolution up to 4K@60Hz (3840X2160)

  • Support 3D, HDR10 (High Dynamic Range)

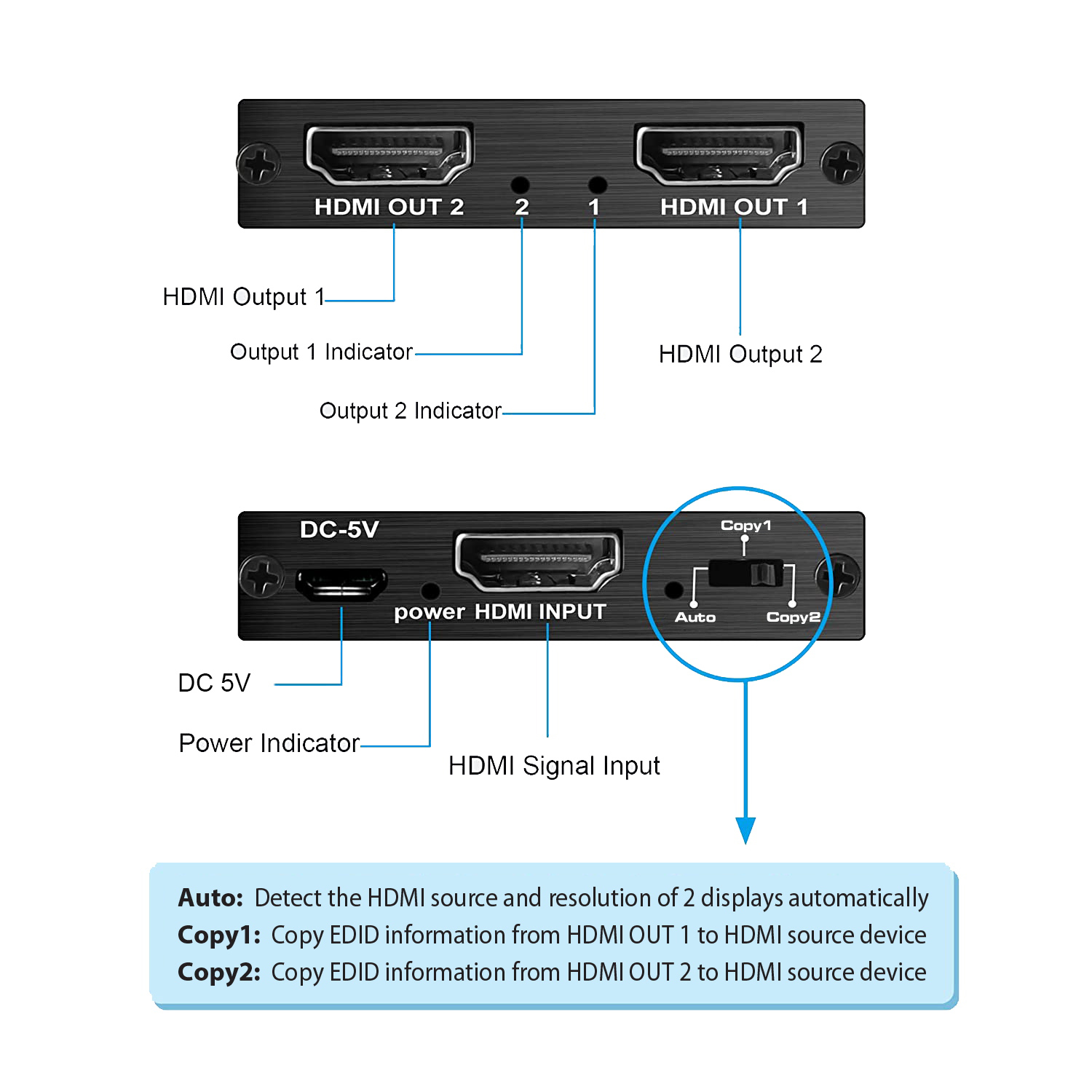

  • LED indication for power and signal

  • Plug and play, no software required



SPECIFICATIONS:

HDMI Version

HDMI 2.0b

HDMI Resolution

480i/480p/576i/576p/720p/1080i/1080p/2160p@ 60Hz

Input Ports

1 x HDMI (Female type)

Output Ports

2 x HDMI (Female type)

Video Support

up to 4K@60hz YUV 4:4:4, 4K@60hz with HDR YUV 4:2:0

Audio Format Support

DTS-HD, Dolby True HD, Dolby Digital Plus, LPCM 7.1

HDR Format Support

 HDR10

HDCP Version Support

HDCP 2.2

Max Bandwidth

18Gbps

Max Input cable distance

1080p<10m, 4K<5m (28AWG HDMI 19+1 cable)

Max Output cable distance

1080p<10m, 4K<5m (28AWG HDMI 19+1 cable)

Max Power Consumption

5W

Power requirement

USB DC 5V1A

Operating Temperature

(-15 to +55°C)

Dimension (L x W x H)

58x48x12mm
