Raspberry Pi International AC/DC Power Supply 13W 5.1V 2.5A - Black (T5989DV)

Raspberry Pi International AC/DC Power Supply 13W 5.1V 2.5A - Black (T5989DV)
  • 51189_thumb_P_1559705936330
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is available for order?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    DELIVERY
    • Post Out Of Stock
    NSW Pickup
    • Villawood Robot Super StoreIcon 3 Out Of Stock
    SA Pickup
    • Croydon Robot Super StoreIcon 3 Out Of Stock

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Raspberry Pi International AC/DC Power Supply 13W 5.1V 2.5A - Black (T5989DV)
  • Model Number:
    T5989DV
  • Brand:
    RaspberryPi RaspberryPi
  • Warranty Period:
    1 Year

Description

Raspberry Pi International AC/DC Power Supply 13W 5.2V 2.5A - Black

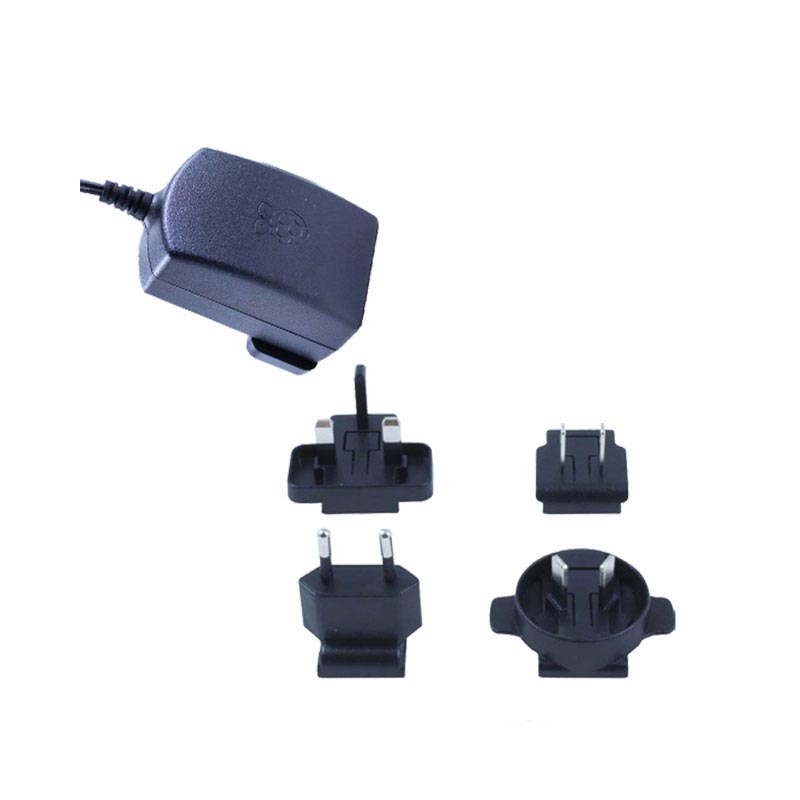

This power supply comes with 1.5m Micro USB lead and four changeable heads for use in the UK, Europe, Australia & US regions. It supports up to 2.5A of current which is plenty to power devices through the four USB ports on the board.


  • Designed to take full advantage of the improved power management on the Raspberry Pi 3

  • ErP Level 6 Efficiency Rating


Raspberry Pi International AC/DC Power Supply 13W 5.1V 2.5A - Black (T5989DV)


Specifications


OUTPUT

OUPUT VOLTAGE

+5.1Vdc

MIN. LOAD CURRENT

0A

NOMINAL LOAD CURRENT

2.5A

NOMINAL OUTPUT POWER

13W

OUTPUT REGULATION

+/-5%

LINE REGULATION

+/-2%

RIPPLE AND NOISE

120mVp-p Maximum

RISE TIME

100mS Maximum at nominal input

TURN-ON   DELAY

3 Seconds Maximum at nominal   input

PROTECTION

Short circuit, over current,   over voltage

EFFICIENCY

80.86%

OUTPUT   CABLE

1500mm Micro USB B 5 Pin

INPUT

INPUT   VOLTAGE RANGE

90-264VAC

INPUT   FREQUENCY

47-63Hz

INPUT   CURRENT

0.5A Max

INRUSH   CURRENT

No damage and IP fuse will not   blow

AC   INLET

UK, Euro, Aus & US   changeable heads

OTHER

DIMENSIONS

73.2 (L) * 45.1 (W) * 35.1 (H)   mm

WEIGHT

Approx 150g

OPERATING   TEMP.

0 °C to 40 °C

STORAGE   TEMP.

-20 °C to +60 °C

OPERATING   HUMIDITY

20 ~ 85 % RH. Non-Condesning

MTBF

50,000 Hours
