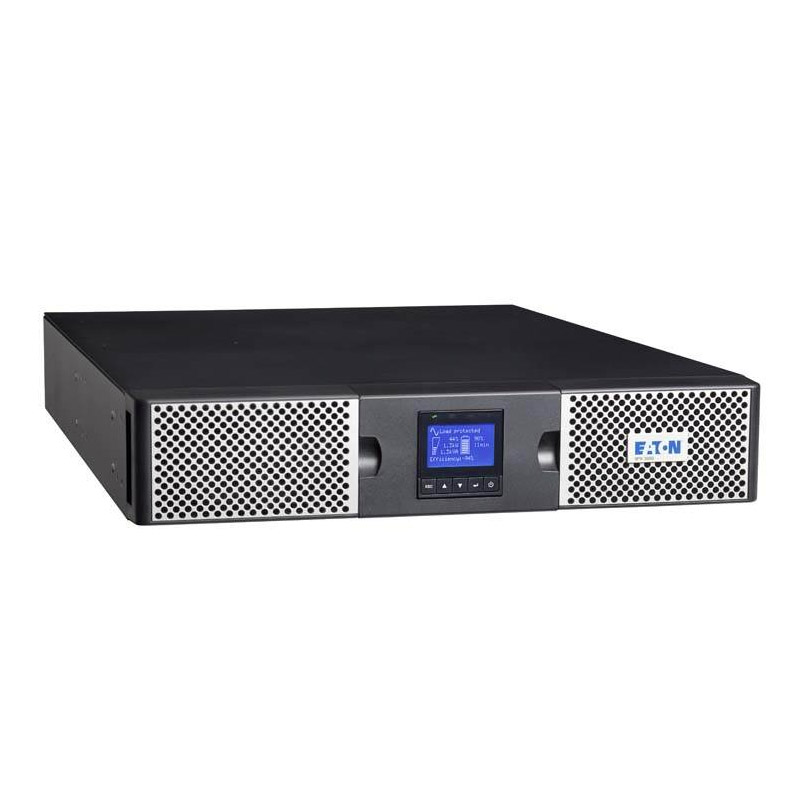

Eaton 9PX 2000VA / 1800W 2U Rack/Tower UPS (9PX2000IRTAU)

Eaton 9PX 2000VA / 1800W 2U Rack/Tower UPS (9PX2000IRTAU)
  • 51977_thumb_P_1565072786406
or 4x fortnightly payments of $330 with ZipPay
Learn more

Pick Up Time :

Get a $5 credit or a free drink if order not ready on pick up time.

Delivery:

- +
Want to be notified when this item is available for order?

Please enter a valid email address

   Your Store   Question Mark

Your store is set to:

Check live stock level
    DELIVERY
    • Post Pre Order
    NSW Pickup
    • Villawood Robot Super StoreIcon 3 Pre Order
    SA Pickup
    • Croydon Robot Super StoreIcon 3 Pre Order

Bell  Stock Levels May Vary

Make sure to have the correct store selected. Stock levels are different at every store!
We don't do walk-ins, please make sure to order online for Pickup.

Specifications

  • Product Name:
    Eaton 9PX 2000VA / 1800W 2U Rack/Tower UPS (9PX2000IRTAU)
  • Model Number:
    9PX2000IRTAU
  • Brand:
    Eaton Eaton
  • Warranty Period:
    3 Year

Description

Eaton 9PX 2000VA / 1800W 2U Rack/Tower UPS (9PX2000IRTAU)


The Eaton 9PX UPS (1000-3000W) provides advanced protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection and being the first in its class to provide Unity power factor (VA=W).


Eaton 9PX 2000VA / 1800W 2U Rack/Tower UPS (9PX2000IRTAU)


Specifications


TOPOLOGY

On-line double conversion with   Power Factor Correction (PFC) system

CONFIGURATION

Rack/Tower

PART   NUMBER

9PX2000iRTAU

RATING (VA/WATTS)

2000/1800

DIMENSIONS   (H X W X D, MM)

86.5 x 440 x605

WEIGHT   (KG)

27.4

WARRANTY

3 years

CONNECTION

(1) IEC-320-C14

INPUT   VOLTAGE RANGE

176-276V without derating (up to   100-276V with derating)

NOMINAL   VOLTAGE

200/208/220/230/240V

FREQUENCY

50/60 Hz autoselection

FREQUENCY   RANGE

40-70 Hz

NOMINAL   VOLTAGE

200/208/220/230/240V

OUTPUT   RECEPTACLES

(6) IEC-320-C13

(2) Aust. 10A

REMOTELY   CONTROLLED SOCKETS

2 Groups: (2) Aust. 10A & (2)   IEC C13 10A

EFFICIENCY   (NORMAL MODE)

Up to 93% in online mode (Up to   98% in Hi-efficiency mode)

OUTPUT   FREQUENCY

50/60 Hz autoselect, frequency   converter mode

BATTERY   MANAGEMENT

ABM® & Temperature   compensated charging method (user selectable), Automatic battery test, deep   discharge protection, automatic recognition of external battery units

EXTENDED   BATTERY CAPABILITY

EBM (2U)

USER   INTERFACE

Multilingual graphical LCD   display

COMMUNICATION   PORTS

1 USB port + 1 serial RS232 port   + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for Remote   Power Off + 1 mini-terminal block for Output relay

COMMUNICATION   SLOT

1 slot for Network-MS card,   ModBus-MS or Relay-MS cards

AUDIBLE   NOISE

40dB

OPERATING   TEMPERATURE

0 to 40°C

SAFETY   MARKINGS

IEC/EN 62040-1, UL 1778, CSA 22.2

EMC   MARKINGS

IEC/EN 62040 -2 , FCC Class B,   CISPR22 Class B

APPROVALS

CE /CB report (TUV) / cULus / EAC   / RCM / KC / Energy Star
