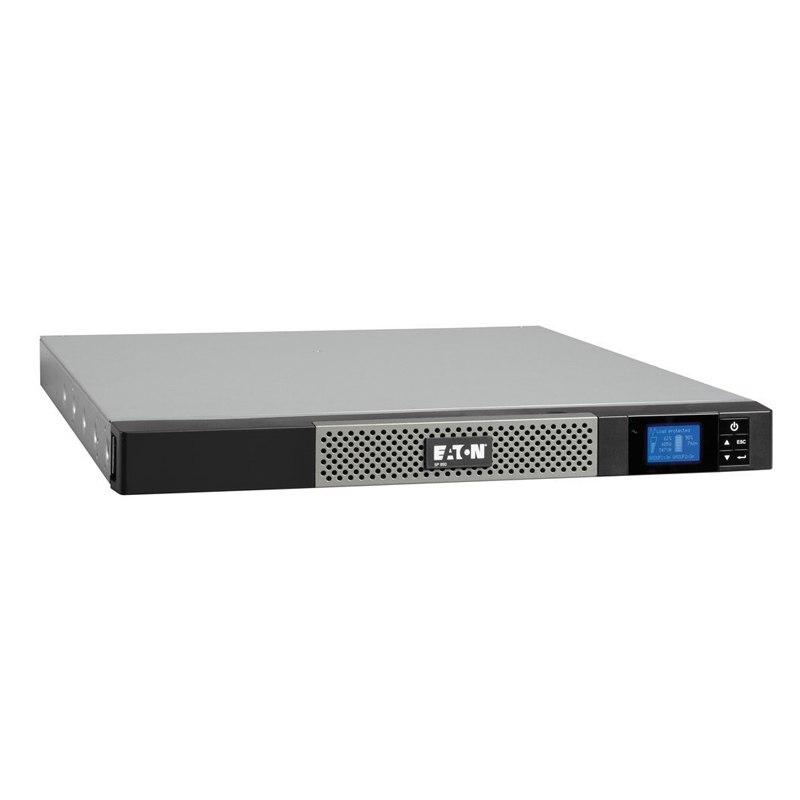

Eaton 5P 850VA / 600W Line Interactive UPS Rack 1U (5P850iR)

Description

Eaton 5P850iR 5P 850VA / 600W Line Interactive UPS Rack 1U

Specifications

GENERAL	Topology: Line-Interactive High Frequency (Pure Sinewave, Booster + Fader) Configuration: Rack 1U Part Number: 5P850iR Rating (VA/Watts): 850/600 Dimensions (H x W x D, mm): 43.2 x 438 x 509 Weight (kg): 13.8 Warranty: 3 years on electronics, 2 years on batteries
ELECTRICAL INPUT	Connection: (1) IEC-320-C14 Input Voltage Without Using Batteries: 160V-294V (adjustable to 150V-294V) Input frequency Range Without Using Batteries: 47 to 70Hz (50 Hz system), 56.5 to 70Hz (60 Hz system), 40Hz in low-sensitivity mode
ELECTRICAL OUTPUT	Voltages: 230 V (+6/-10 %) (Adjustable to 200V / 208V / 220V / 230V / 240V) Outlets: (4) IEC-320-C13 Remotely controlled sockets: 2 groups of 2 x IEC C13 (10 A) Output Frequency: 50/60 Hz +/- 0.1 % (autosensing)
BATTERY	Battery Management: ABM® or constant voltage charging method (user selectable), automatic battery test, deep discharge protection
COMMUNICATIONS	Communication Ports: 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini-terminal block for remote ON/OFF and Remote Power Off Communications Card Slots: 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
ENVIRONMENTAL AND STANDARDS	Audible Noise: < 40 dBA Operating Temperature: 0 to 35°C Safety markings: IEC/EN 62040-1, UL 1778 EMC Markings: IEC/EN 62040-2, IEC/EN 62040-3 (performance) Approvals: CE, CB report, TÜV
