GENERAL |
|
Phase | Single Phase |
Form Factor | Rackmount, Tower |
UPS Topology | Line-interactive |
Energy Saving Technology | GreenPower UPS™ Bypass Technology |
Active PFC Compatibility | Yes |
INPUT |
|
Nominal Input Voltage ( Vac ) | 220 ± 5% 230 ± 5% 240 ± 5% |
Input Voltage Range ( Vac ) | 160 ~ 286 |
Adjustable Voltage Range ( Vac ) | 150 ~ 300 Vac |
Input Frequency ( Hz ) | 50 ± 3 60 ± 3 |
Input Frequency Detection | Auto-sensing |
Input Connector Type | IEC C14 |
Detachable Power Cord Plug Type | AU x 1 |
Power Cord Length (m.) | 3 |
OUTPUT |
|
Capacity (VA) | 1000 |
Capacity (Watts) | 800 |
On Battery Waveform | Pure Sine Wave |
On Battery Voltage(s) ( Vac ) | 220 ± 5 % 230 ± 5 % 240 ± 5 % |
On Battery Frequency ( Hz ) | 50 ± 1% 60 ± 1% |
Power Factor | 0.8 |
Automatic Voltage Regulation (AVR) | Double Boost, Single Buck |
Overload Protection | Internal Current Limiting |
Outlet(s) - Total | 6 |
Outlet Type | IEC C13 x 6 |
Outlet(s) - Battery & Surge Protected | 6 |
Outlet(s) - Critical Load (CL) | 2 |
Outlet(s) - Non-Critical Load (NCL) | 4 |
Typical Transfer Time ( ms ) | 4 |
BATTERY |
|
Runtime at Half Load ( min ) | 12 |
Runtime at Full Load ( min ) | 3.1 |
Typical Recharge Time ( Hours ) | 6 |
Start On Battery | Yes |
User-replaceable | Yes |
Hot-swappable | Yes |
Battery Type | Sealed Lead-acid |
Battery Cartridge (RBP) | RBP0027 |
Battery Cartridge (RBP) Quantity ( pcs ) | 1 |
SURGE PROTECTION & FILTERING |
|
Surge Suppression ( Joules ) | 810 |
EMI/RFI Filtration | Yes |
MANAGEMENT & COMMUNICATIONS |
|
LCD Panel | Yes |
LCD Information Display | Operation Type, Power Status, Battery Status, Load Status, Fault & Warning |
LCD Setting & Control | Alarm Setting, Input & Output, Battery Setting |
LED Indicators | Power On |
HID Compliant USB Port(s) | 1 |
Emergency Power Off (EPO) Port | Yes |
Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat |
Management Cable ( pcs ) | Power Cord x2, USB Cable x1, Serial Cable x1, EPO Cable x1 |
Power Management Software | PowerPanel Business (Recommended) |
PowerPanel Cloud Service | Yes - 90 Days Free Trial with PowerPanel Personal/Business |
PHYSICAL |
|
Enclosure Construction | Metal |
Color | Black |
Rackmount Ears | Yes |
PHYSICAL SIZE - UPS MODULE |
|
Dimensions (WxHxD) (in.) | 16.9 x 1.7 x 19.3 |
Dimensions (WxHxD) (mm.) | 430 x 44 x 490 |
Weight (lbs.) | 40 |
Weight (kg.) | 18 |
Installed Rack Height ( U ) | 1 |
ENVIRONMENTAL |
|
Operating Temperature (°F) | 32 ~ 104 |
Operating Temperature (°C) | 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
Operating Elevation ( feet/meters ) | 0-9,843 feet (0-3,000 meters) |
Storage Temperature (°F) | 5 ~ 113 |
Storage Temperature (°C) | -15 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % ) | 0 ~ 95 |
Storage Elevation ( feet/meters ) | 0-49,213 feet (0-15,000 meters) |
Online Thermal Dissipation ( BTU/hr ) | 72 |
CERTIFICATIONS |
|
Certifications | CE, C-Tick, EAC |
RoHS | Yes |
OTHERS |
|

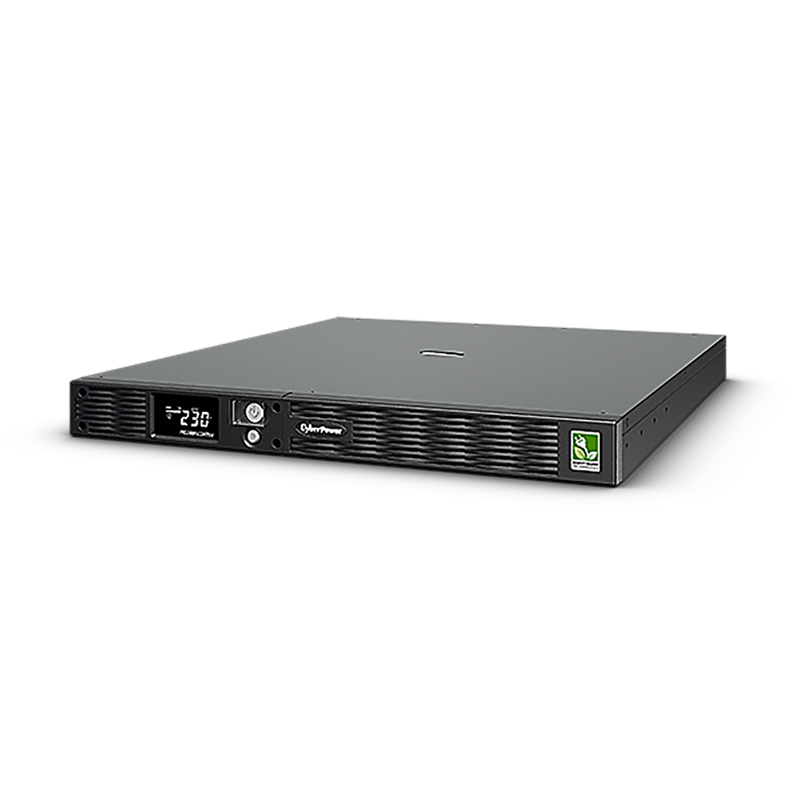

What’s in the Box | PR1000ELCDRT1U UPS Rackmount Ears Screw Kit Power Cord USB Cable Serial Cable EPO Cable User's Manual * Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide. |
