Specifications

  • Product Name:
    Aten Mini USB KVM Console Extender 1920x1200 @ 100m VGA Gain Control (No Local Console)
  • Model Number:
    CE100-AT-U
  • Brand:
  • Warranty Period:
    1 Year

Description


CE100
MINI USB KVM Extender

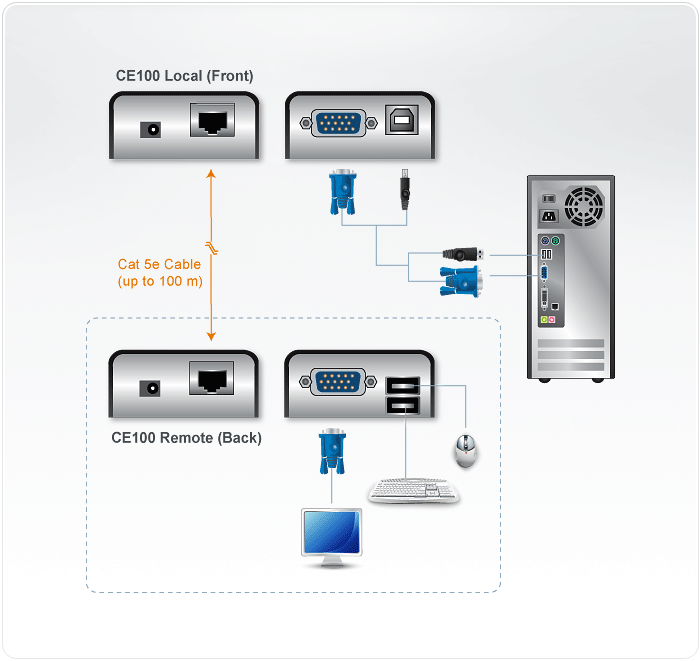

The CE100 USB KVM Extender with superior video quality and built-in ESD protection allows access to a computer system from a remote USB console (USB keyboard, USB mouse, and monitor).
The CE100 improves on previous designs by: 1) incorporating a compensation adjustment function at the Remote unit for greater video quality; and 2) using inexpensive Cat 5e cable, instead of bulky, expensive, standard cables, to provide a neater, more convenient, more reliable data transfer connection.



Package Contents
  • 1x CE100L Mini USB KVM Extender (Local Unit)
  • 1x CE100R Mini USB KVM Extender (Remote Unit)
  • 1x USB/VGA Cable
  • 1x Power Adapter (for Remote Unit)
  • 1x Mounting Kit
  • 1x User Instructions
  • Features
  • xtends local PC VGA/keyboard/Mouse to Remote side
  • Uses Cat 5e cable to connect the local and remote units
  • Easily add or remove computers connected to the installation
  • Supports real time DDC communication
  • Superior video quality up to 1920 x 1200
  • Allow access to a computer from the remote console up to 100 m distance
  • Support manual compensation adjustment for better video quality
  • No external power supply needed for local unit
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Wall mountable
  • Connectors
      CE100L CE100R
    Connectors Console
    Ports
    Keyboard N/A 1 x USB Type A Female (White)
    Video N/A 1 x HDB-15
    Female (Blue)
    Mouse N/A 1 x USB Type A Female (White)
    KVM
    Ports
    Keyboard
    / Mouse
    1 x USB Type B Female (White) N/A
    Video 1 x HDB-15
    Male (Blue)
    N/A
    Power 1 x DC Jack
    Unit to Unit 1 x RJ-45 Female (Black)
    Switch
  • CE100L: N/A
  • CE100R: 1 x Knob
  • LEDs Link 1 (Blue)
    Power 1 (Green)
    Video 1920 x 1200 @ 60 Hz (30 m);
    1280 x 1024 @ 60 Hz (100 m)
    Power Consumption
  • CE100L:DC5V, 0.5W
  • CE100R:DC5V, 1.25W
  • Environment Operating Temp. 050°C
    Storage Temp. -2060°C
    Humidity 080% RH, Non-condensing
    Physical Properties Housing Metal
    Physical Properties
  • Weight 0.16 kg
    Dimensions
    (L x W x H)
  • 9.10x5.74x2.40cm

  • * Specifications are subject to change without notice.
    * Specifications may vary.
    * The product picture(s) is only for your reference, it may differ from the actual product.
