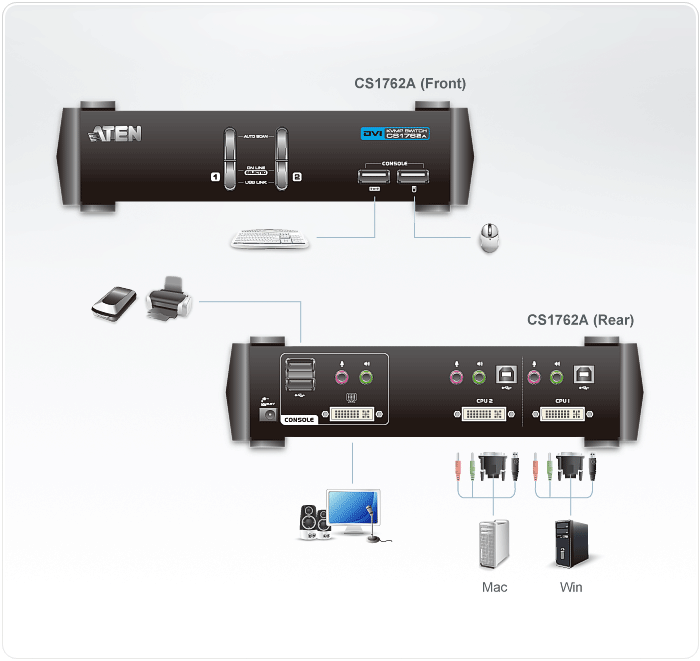

The CubiQ CS1762A USB 2.0 DVI KVMP Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1762A comes with ATEN's new Video DynaSync technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis. |
| Package Contents | | | Features | One USB console controls two DVI computers and two additional USB 2.0 devices 2-port USB 2.0 hub built in Fully compliant with the USB 2.0 specification Computer selection via front panel pushbuttons, hotkeys, and mouse Audio enabled full bass response provides a rich experience for 2.1 channel surround sound systems Multiplatform support Windows, Linux, Mac, and Sun Supports widescreen resolutions Superior video quality 1920 x 1200 Independent switching of KVM, USB, and Audio focus DVI digital and analog monitor support fully compliant with the DVI specifi cations HDCP compatible Video DynaSync exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems Power on detection if one computer is powered off, the switch will automatically switch to the next powered-on computer Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice Complete keyboard emulation for error-free booting Mac/Sun keyboard support and emulation* Multilingual keyboard mapping supports English, Japanese, and French keyboards Auto Scan Mode for monitoring all computers Firmware upgradable
* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboards only work with their own computer
| | Computer Connections | 2 | | Port Selection | Front Panel Pushbuttons;
Hotkey, Mouse | | Connectors | Console PortsKeyboard1 x USB Type A Female (White; front panel)Video1 x DVI-I Female (White)Mouse1 x USB Type A Female (white; front panel)Speakers1 x Mini Stereo Jack Female (Green; rear panel)Mic.1 x Mini Stereo Jack Female (Pink; rear panel)KVM PortsKeyboard / Mouse2 x USB Type B Female (White)Video2 x DVI-I Female (White)Speakers2 x Mini Stereo Jack Female (Green)Mic.2 x Mini Stereo Jack Female (Pink)Power1 x DC JackUSB Hub2 x USB Type A Female (Black, rear panel) | | Switches | Selected 2 x Pushbutton | | LEDs | On Line / Selected 2 (Orange)
USB Link 2 (Green) | | Emulation | Keyboard/Mouse USB | | Video | 1920 x 1200 | | Scan Interval | 199 secs. (5 secs. default) | | Power Consumption | DC5.3V, 9.0W | | Environment | Operating Temp. 0 - 50°C
Storage Temp. -20 - 60°C
Humidity 0-80% RH, Non-condensing | | Physical Properties | Housing Metal
Weight 0.73 kg
Dimensions ( L x W x H ) 21.00x8.80x5.55cm | | Note | * The specification and pictures are subject to change without notice.
* All trademarks and logos are the properties of their respective holders. |
* Specifications are subject to change without notice.
* Specifications may vary.
* The product picture(s) is only for your reference, it may differ from the actual product.
|
