Aten 2 Port USB 2.0 DVI CABLE KVMP Switch (CS-682)

Description

Aten 2 Port USB 2.0 DVI CABLE KVMP Switch (CS-682)

Superior video quality - up to 1920 x 1200 @ 60 Hz

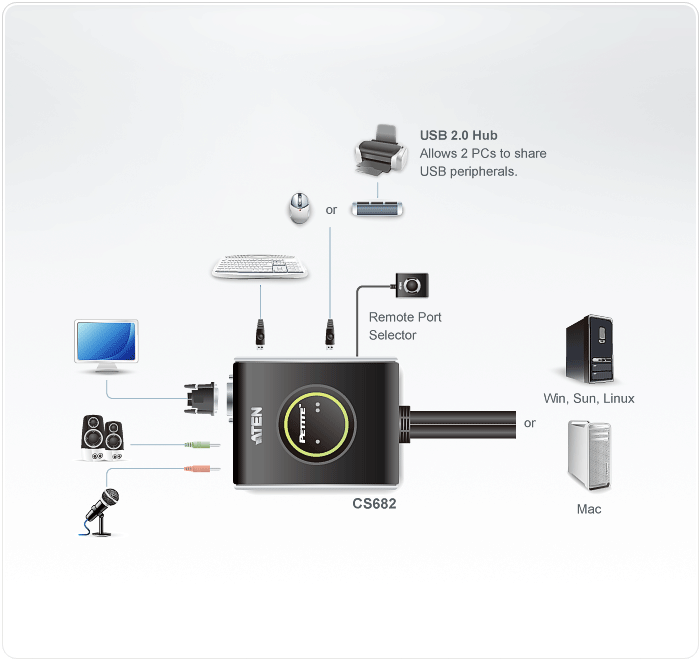

Computer selection via a remote port selector, hotkeys, and USB mouse
Independent switching of the KVM and Audio focus - one computer has the KVM focus and the other the Audio focus
Built-in all-in-one cables (2 x 1.2 m) and bus-powered design

Specifications

Computer Connections	2
Port Selection	Hotkey, Mouse, Remote Port Selector
Connectors
Console Ports	1 x DVI-D Female (White) 2 x USB Type A Female 1 x 3.5mm Audio Jack Female (Green) 1 x 3.5mm Audio Jack Female (Pink)
KVM Ports	2 x DVI-D Male (Black) 2 x USB Type A Male (Purple) 2 x USB Type A Male (Black) 2 x 3.5mm Audio Jack Female (Green) 2 x 3.5mm Audio Jack Female (Pink)
Remote Port Selector	1 x 2.5mm Audio Jack Female
LEDs
KVM	2 (Green)
Remote Port Selector	2 (Green)
Cable Length
KVM	2 x 1.2 m
Remote Port Selector	1.8 m
Emulation
Keyboard / Mouse	USB
Video	1920 x 1200 @ 60Hz
Scan Interval	3, 5, 10, 20 secs. (default 5 secs.)
Power Consumption	DC5V:1.95W:22BTU
Environmental
Operating Temperature	0 - 50°C
Storage Temperature	-20 - 60°C
Humidity	0 - 80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.49 kg ( 1.08 lb )
Dimensions (L x W x H)	11.15 x 7.80 x 2.40 cm (4.39 x 3.07 x 0.94 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Package Contents
